Swit S-3602D

• Charger for SWIT S-8D58/8D98 battery
• Charger for SWIT S-8D62 battery
• Compatible with Panasonic VW-VBD58
• Compatible with Panasonic AG-VBR59
• Compatible with Panasonic D54/D28
• 2-ch simultaneous charging
• 2 DC adapting output sockets
• 4-level LED charging indicators

Panasonic DV battery Charger

For VW-VBD58, AG-VBR59 and CGA-D54/D28

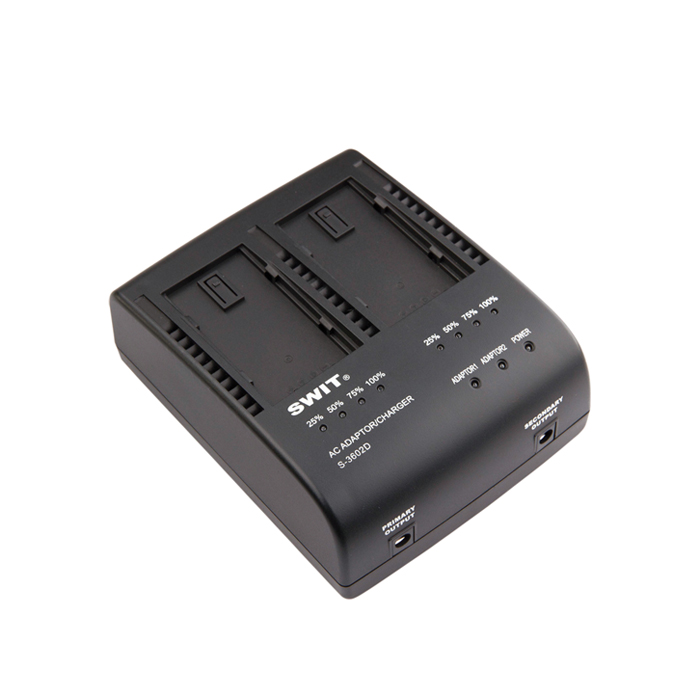

S-3602D is a dual channel charger for SWIT S-8D98, S-8D58 and S-8D62, and compatible with Panasonic VW-VBD58, AG-VBR59 and CGA series D54, D28 DV batteries.

Dual Channel Simultaneous Charging

S-3602D has 2 charging channels, with DC 8.4V, 1.8A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.

AC-DC Adapting Output

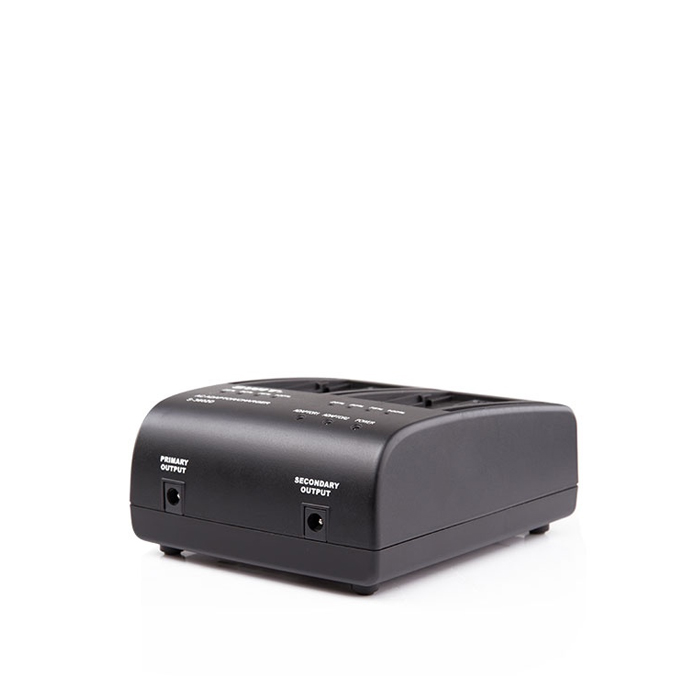

S-3602D has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500P dummy Panasonic CGA series battery adaptor for adapting Panasonic DV cameras that use VW-VBD58, AG-VBR59 or CGA-D54/D28 series batteries, or the equipments with the above battery mounts.
