SmallRig 2837 Shoulder Pad Pro

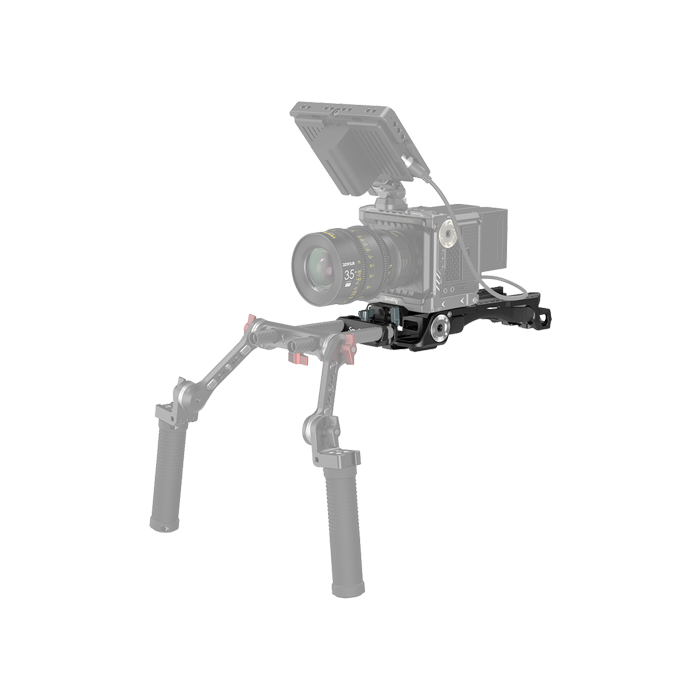

Users can realize a rapid switch between shoulder shooting and tripod shooting through 2837.

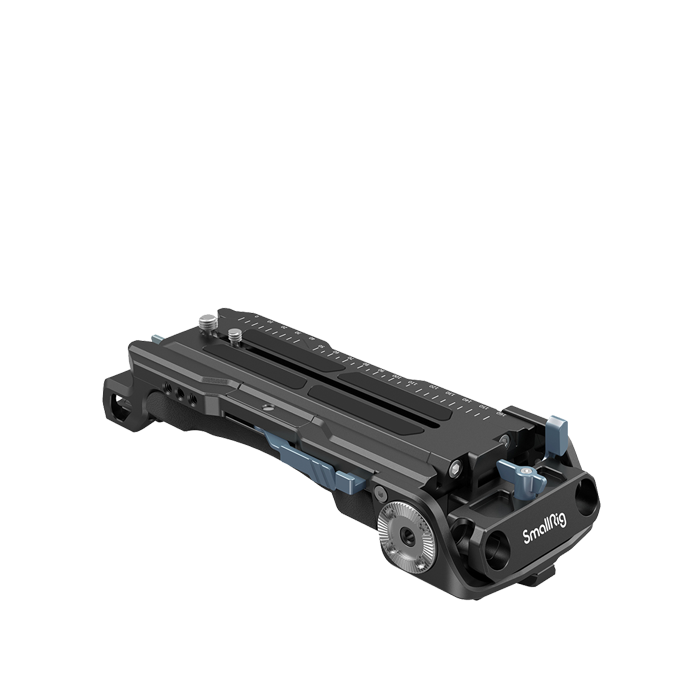

Both sides of 2837 are standard M6 ARRI rosette mount, which can be installed with the original control handle of  SmallRig 1810 or FX9 machines.

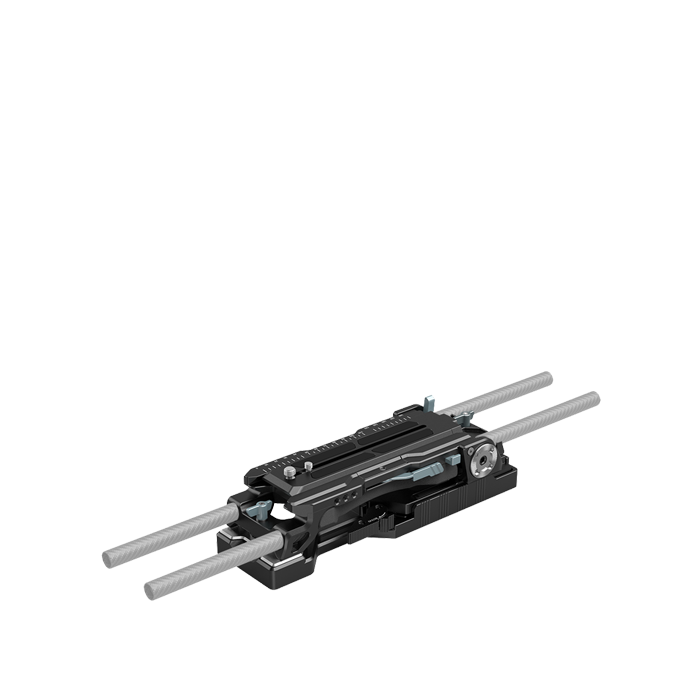

The front and rear ends of the dual rod system have a standard diameter of 15mm and a spacing of 60mm.

Moreover, the front-end dual rod system can save 24mm for up-regulating, which can guarantee the spacing between the lens center of FX9, FS5, URSA MINI, CANON C300 and other devices to be 85mm as the standard.

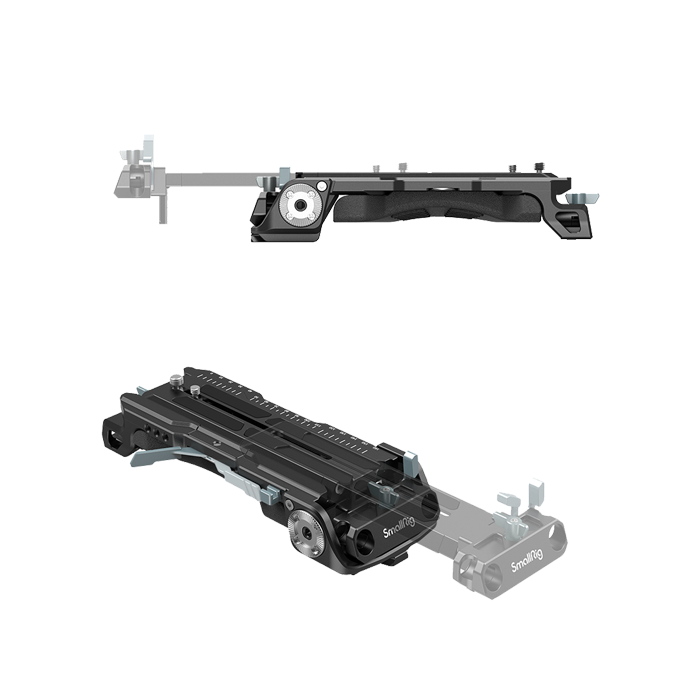

In order to facilitate users to adjust the equipment’s center gravity and install the following focus and matte box, 2837 can be adjusted forward about 80mm through the built-in Manfrotto 501 quick release plate, and the front two tubes can be adjusted together with the quick release plate, so there is no need to remove the equipment such as follow focus and matte box.

The right side of 2837 is reserved with a 1/4"-20 threaded hole, which can be used for installing magic arms and other products.

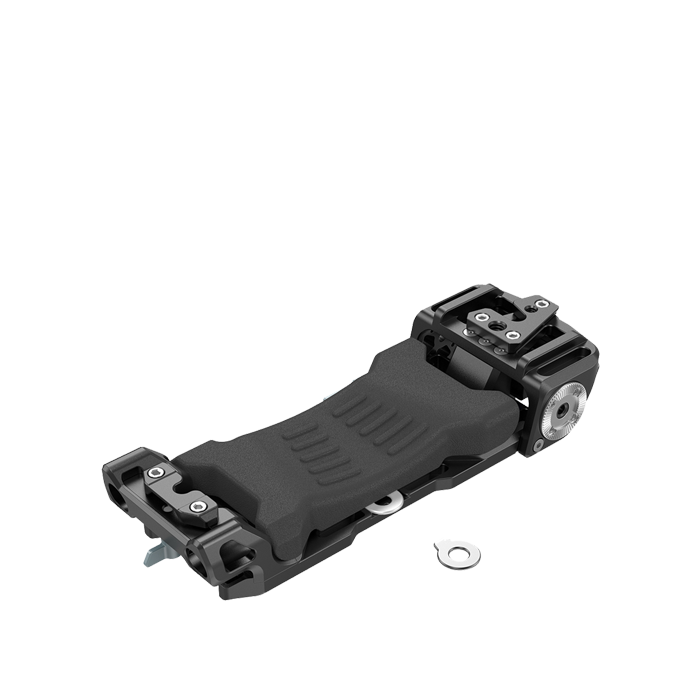

2837 adopts the new silicone shoulder pad, which conforms to the shape of human shoulders and is soft and comfortable.

In addition, the 2837 built-in flat wrench can be used on-demand.
