Portkeys BM5 WR monitor

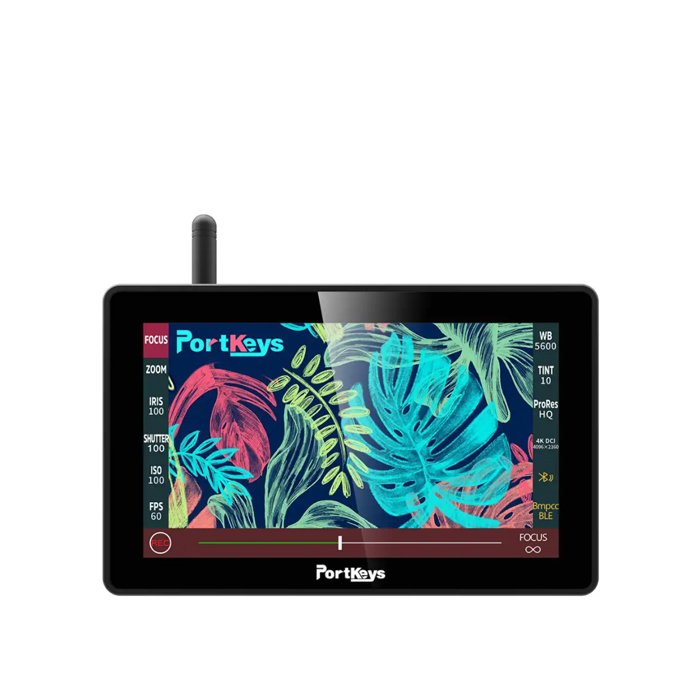

A 2200 Nits ultra clear HDMI SDI Touch Screen 5.5 "Monitor with 3D Luts and built-in camera control module.

2200 Nits 5.5 inch panel: Aluminum alloy touch screen monitor + tempered glass with 1920x1080 resolution. Camera Control: Photo, Video Recording, AV, Tv, ISO, Auto Focus, Zoom, Manual Focus.

A Portkeys USB-C cable or a Sony compatible cable is supplied.


Support Camera

• Support Wi-Fi control RED Komodo
• Bluetooth control BMPCC 4K, 6K, 6K Pro
• Wired control of Sony, Canon, Panasonic, BMD, and ZCam E2.
• It also supports motor control of the Tilta Nucleus N/M.
• It allows you to control the focus of Komodo, BGH1, E2 via the touch screen.

Camera Control

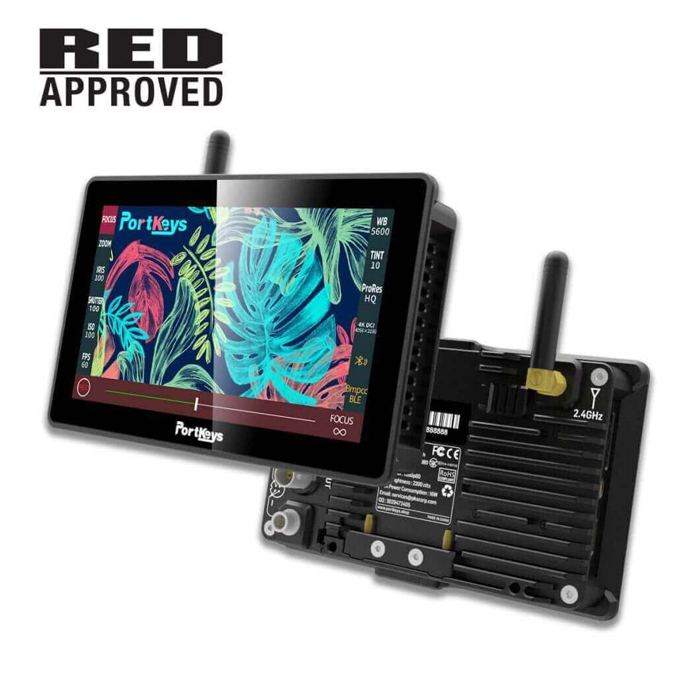

Portkeys BM5 WR comes with a wireless control module specially designed to connect with RED Komodo wirelessly. The BM5 WR with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control.

Robust design

Rugged aluminum alloy shell design, durable and lightweight. BM5 WR uses a sturdy aluminum alloy shell and weighs only 376g, which can withstand heavy daily operations, so it is easy to carry when shooting.

2200nits Super Bright, Sees Everything Clearly in Daylight

Portkeys BM5 WR offers a 2200nits ultra-high brightness 5.5-inch display with a clear resolution, excellent color, and contrast, and precise image control.

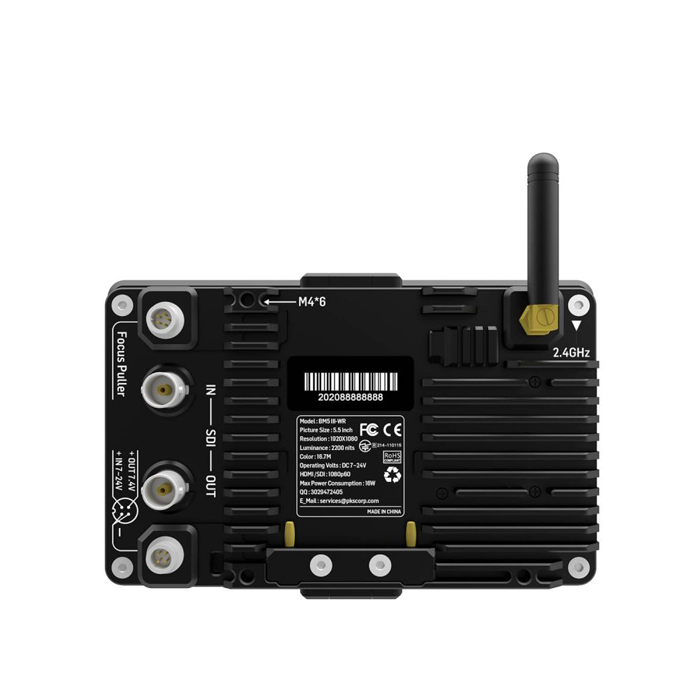

HDMI/SDI Loop Out

The SDI input provides real-time monitoring. SDI OUT can output an image superimposed with 3DLUT and a new peak.

Color calibration

Each BM5 WR has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors.

10-bit (8+2 FRC)

The 10-bit color depth makes the display color reproduction more accurate, the image quality is more delicate, and the level is richer.

New Peaking

The optimized new peaking algorithm can accurately capture the subtle facial focus. IRE can be set freely for ARRI false color.

High-precision Waveform

The high-precision full-screen waveform can accurately capture 1920X1080 pixels frame by frame.

Semi-Transparent Superimposable Frozen Frame Image

The freeze-frame can be semi-transparently superimposed on the HDMI or SDI video so that the photographer can correct the displacement.

Tilta Cursor Display

The BM5 III-WR can display the position of the iron head wireless follow the focus scale. All in all, it can provide professional content creators with reliable tools for various scenario.
